| Homologation: |
CIK/FIA 90/CH/14 |
| Main frame tubing: |
Cr-Mo steel 30/32mm |
| Wheelbase: |
1040mm |
| Rear axle: |
40 o 50 Ø mm, black, with 3 positions adjustable ride height |
| Braking system: |
 (CIK/FIA 132/FR/14) |
| Brake lines: |
braided steel, silver |
| Rear brake disk: |
Self-ventilated floating rear disk, in cast-iron, 190mm Ø, thickness 16mm |
| Front brake disk: |
Self-ventilated, in cast-iron, Ø 160mm, thickness 11mm with front magnesium brake disk carrier |
| Rear brake caliper: |
Black anodized, special alloy forged caliper, 4 pistons, self-adjusting |
| Front brake calipers: |
Black anodized, special alloy forged caliper, 2 pistons, self-adjusting |
| Brake pump: |
Double-circuit brake master cylinder with aluminium oil recovery tank |
| stub axle: |
25mm hollow, with 10mm precision ground king-pin bolt |
| Steering wheel: |
320 Ø mm, leather with embroidery |
| Wheels: |
Black magnesium wheels, low volume, 212-132mm |
| Chassis set up: |
- 16 positions adjustable caster/camber pills
- front ride height
- Adjustable Ackerman
- Complete front stabilizer
|
| Features: |
- Magnesium accessories
- Adjustable exhaust holder bracket
- Axle bearing flange with 5 fixing holes
- Bearing axle locking adjustment screw
- Smooth running axle bearings
- Adjustable feet support
|
| Seat: |
Flat bottom, light weight, clear fiberglass |
| Bodywork: |
CIK/FIA homologated |
| Graphics: |
Complete set, high thickness |
| Rear bumper: |
CIK/FIA homologated rear plastic protection |
| Options at extra charge: |
- Side torsion bar
- Rear torsion bar
- Aluminium pedals
- Chain guard closed type
|

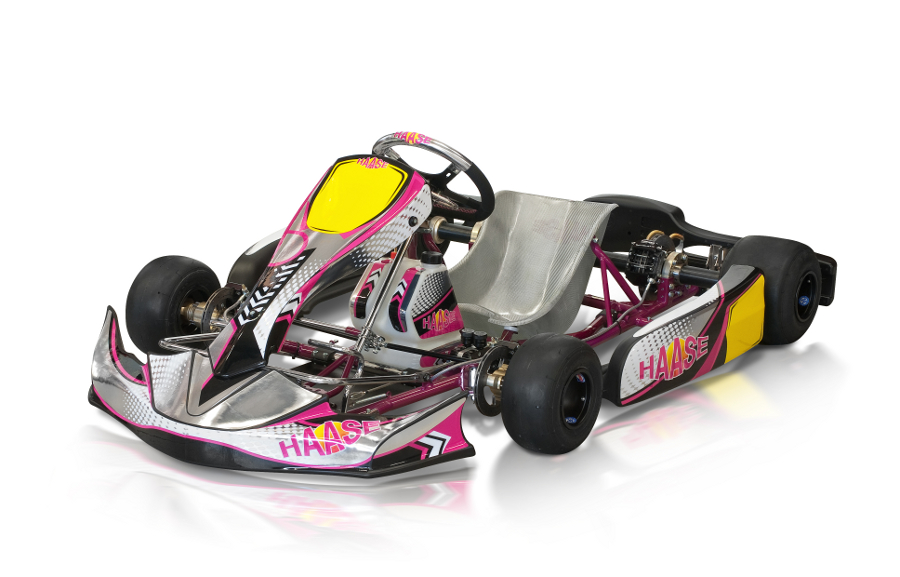

IKON KZ 125
